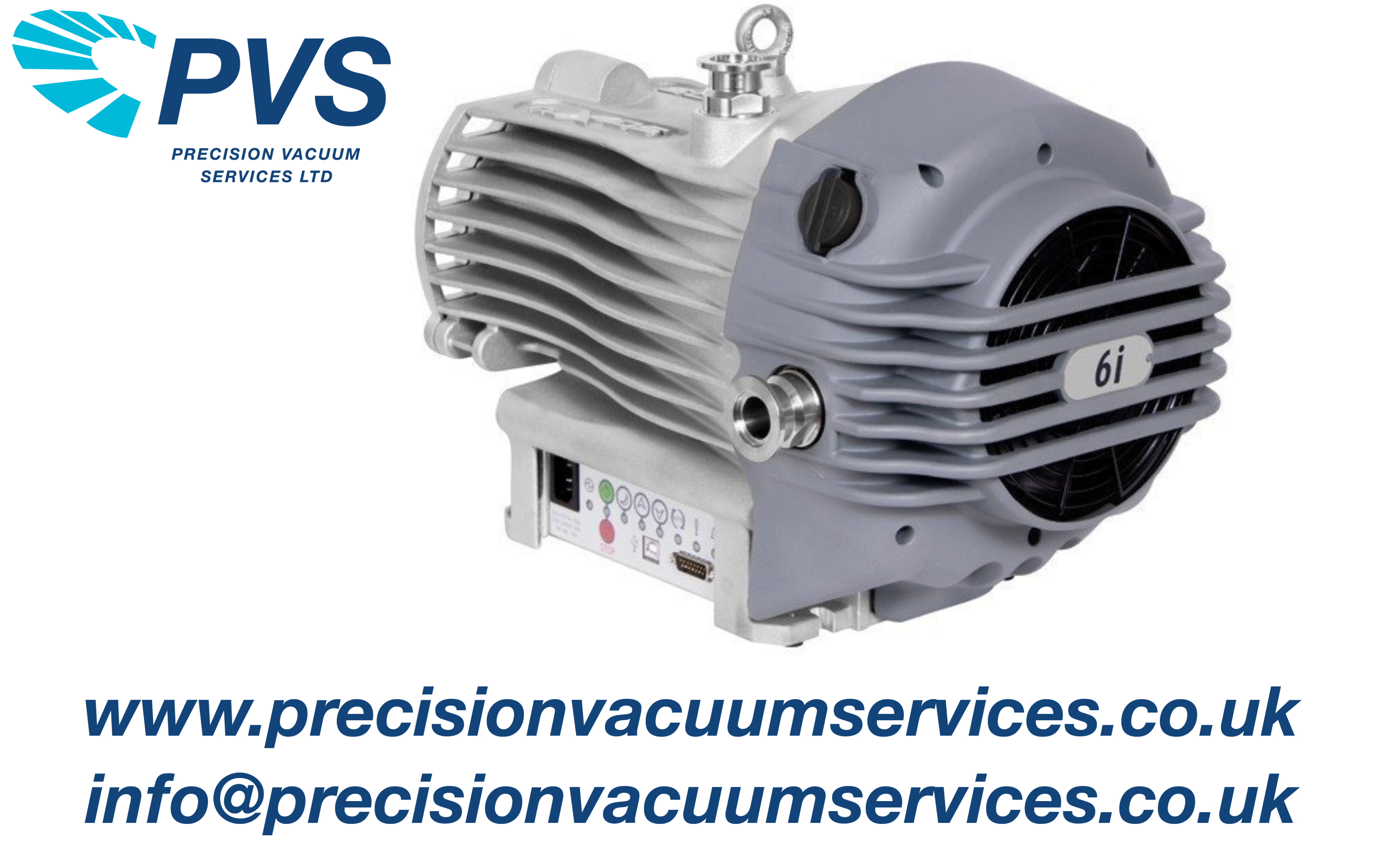

REFURBISHED EDWARDS nXDS6i

Part Number Variant:

A73501983 nXDS6i 100-127/200-240 V, 50/60 Hz 1ph
A73502983 nXDS6iC 100-127/200-240 V, 50/60 Hz
A73503983 nXDS6iR 100-127/200-240 V, 50/60 Hz

All our refurbished products carry a PVS Ltd. 12mth warranty for peace of mind. Competitively priced offering a significant cost saving over new equipment.
All our refurbished pumps are put through a stringent process,

  • Stripped, decontaminated and inspected
  • Rebuilt replacing perishable service components such as O-rings, gaskets, bearings, valves, vanes, tipseals, filters etc.
  • Fully tested to OEM specifications
  • 12mth warranty

Price: POA, please contact us for latest prices

Nominal rotational speed
1800 rpm
Displacement
6.2 m3h-1 / 3.6 ft3min-1
Peak pumping speed
6.2 m3h-1 / 3.6 ft3min-1
Ultimate vacuum (total pressure)
0.020 mbar / 0.015 Torr
Minimum standby rotational speed
1200 rpm
Speed control resolution (percentage of full rotation speed)
1%
Pumping speed at minimum rotational speed
4.1
Maximum continuous inlet pressure
200 mbar
Motor power 1-ph
260 W
Power connector 1-ph
IEC EN60320 C13
Recommended fuse
10A, 250Vac rms
Weight
26.2 kg / 58 lb
Inlet flange
NW25
Exhaust flange
NW25
Noise level
52 dB(A)
Vibration at inlet flange
< 4.5 mms-1 (rms)
Leak tightness (static)
< 1x10-6 mbar ls-1
Operating temperature range
5 to 40 °C / 41 to 104 °F
REFURBISHED EDWARDS nXDS6i
