Precision Vacuum Services Ltd

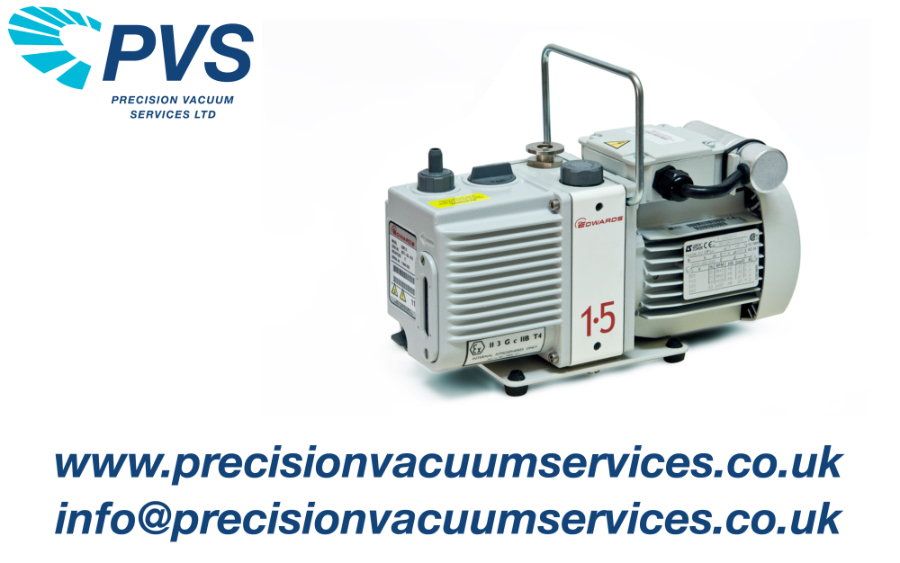

REFURBISHED EDWARDS E2M1.5

Part Number Variant:

A37122919 E2M1.5 200-230V, 1-ph, 50/60Hz
A37132919 E2M1.5 200-230V, 1-ph, 50/60Hz, IEC 60320 connectors
A37104919 E2M1.5 interstage 200-230V, 1-ph, 50/60Hz, IEC 60320 connectors

All our refurbished products carry a PVS Ltd. 12mth warranty for peace of mind. Competitively priced offering a significant cost saving over new equipment.
All our refurbished pumps are put through a stringent process,

  • Stripped, decontaminated and inspected
  • Rebuilt replacing perishable service components such as O-rings, gaskets, bearings, valves, vanes, tipseals, filters etc.
  • Fully tested to OEM specifications
  • 12mth warranty

Price: POA, please contact us for latest prices

Displacement (swept volume)
50 Hz
1.8 m3h-1 / 1 ft3min-1
60HZ
2.2 m3h-1 / 1.3 ft3min-1
Speed (Pneurop 6602)
50 Hz
1.6 m3h-1 / 0.8 ft3min-1
60Hz
2.0 m3h-1 / 1.2 ft3min-1
Ultimate vacuum (total pressure)
without gas ballast
3 x 10-3 mbar / 2.3 x 10-3 Torr
with gas ballast
2.5 x 10-2 mbar / 1.9 x 10-2 Torr
Inlet connection
NW10 flange
Outlet connection
Nozzle 11 mm external diameter removable from ⅜ inch BSP tapped hole
Maximum permitted pressure at outlet
0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour
15 mbar / 11 Torr
Maximum water vapour pumping rate
16 gh-1
Motor power 50/60 Hz (IP54)
0.16 kW
Nominal rotation speed 50/60Hz
2800/3400 rpm
Power connector
IEC EN60320 C13
Operating temperature range
12 – 40°C
Weight
10 kg / 22 lbs
Noise
54 dB (A) @ 50 Hz
Noise with acoustic enclosure
47 dB(A) @ 50Hz
Oil capacity - max
0.28 litre
Min
0.2 litre
Recommended oil (supplied)
Ultragrade 15
REFURBISHED EDWARDS E2M1.5
Edwards E2M1.5 Manual
View Manual
