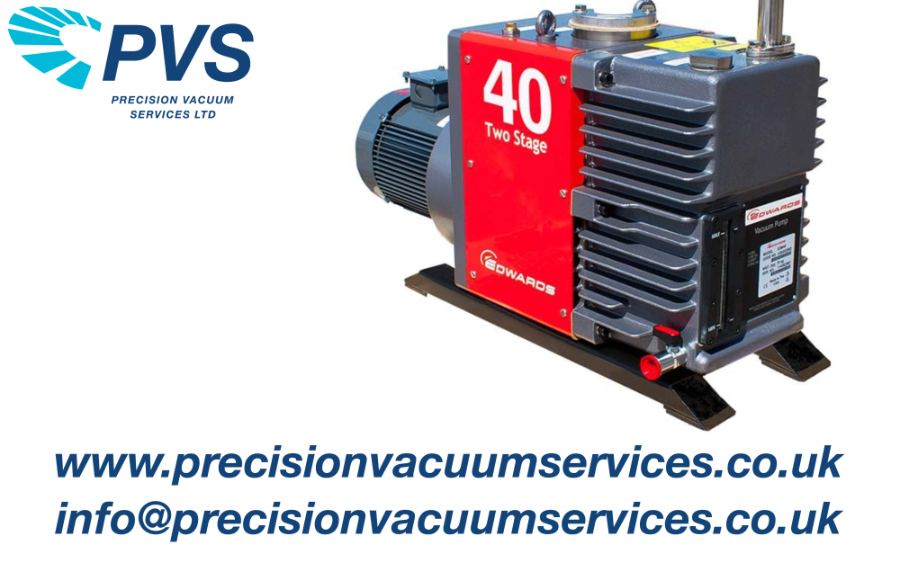

NEW EDWARDS E2M40

Part Number Variant
A364-01-960 E2M40, 240 V, 50 Hz, single-phase
A364-01-935 E2M40, 220-240/380-415 V, 50 Hz, three-phase
A364-02-982 E2M40, 208 V, 50 Hz/208-230 V, 60 Hz/460 V, 60 Hz, three-phase
A364-13-935 E2M40S, 220-240/380-415 V, 50 Hz, three-phase
A364-13-982 E2M40S, 208 V, 50 Hz/208-230 V, 60 Hz/460 V, 60 Hz, three-phase
A36418993 E2M40T4 400V, 3-ph, 50Hz
A36404940 E2M40 HC IE3 EU/US 50/60HZ 380-400V 50HZ, 230 / 460V 60HZ
A36404934 E2M40 HC IE3 ASIA 50/60HZ 200V 50/60HZ, 380V 60HZ
A36417934 E2M40 FX IE3 ASIA 50/60HZ 200V 50/60HZ, 380V 60HZ, FOMBLIN
A36417940 E2M40 FX IE3 EU/US 50/60HZ 380-400V 50HZ, 230 / 460V 60HZ
A36407934 E2M40 AZ IE3 ASIA 50/60HZ 200V 50/60HZ, 380V 60HZ
A36407940 E2M40 AZ IE3 EU/US 50/60HZ 380-400V 50HZ, 230 / 460V 60HZ

New, factory warranted pumps available.

Price: POA, please contact us for latest prices

NEW EDWARDS E2M40

Manual
View Manual

Displacement
50Hz
42.5 m3h-1 / 25 ft3min-1
60Hz
50.5 m3h-1 / 29.7 ft3min-1
Speed (Pneurop)
50Hz
37 m3h-1 / 21.8 ft3min-1
60Hz
44 m3h-1 / 25.9 ft3min-1
Number of stages
2
Ultimate vacuum
Without gas ballast (total pressure)
1 x 10-3 mbar 7.7 x 10-4 Torr
With gas ballast (partial pressure)
5 x 10-3 mbar 3.8 x 10-3 Torr
Ultimate with Fomblin®
Without gas ballast
1 x 10-2 mbar 3.8 x 10-3 Torr
Inlet connection
ISO40
Outlet connection
25 mm flange suitable for NW25
Max outlet pressure
0.5 bar gauge
Max inlet pressure for water vapour
7 mbar / 5.3 Torr
Max water vapour pumping rate
0.2 kg h-1 / 0.4 lb h-1
Weight
75 kg / 165 lb
Motor protection rating
IP55
Motor power
50Hz
1.1 kW / 1.5 hp
60Hz
1.5 kW / 2 hp
Standard oil capacity
maximum
4 litre
minimum
2.2 litre
PFPE oil capacity
maximum
4 litre
minimum
2.2 litre
Recommended oil
Ultragrade 70
PFPE prepared version
Fomblin® Y06/6
Noise level
65 dB (A)
